LED displays have become an essential part of modern event production, transforming concerts, corporate conferences, exhibitions, product launches, festivals, and outdoor celebrations into immersive visual experiences. However, producing a successful LED display setup involves much more than installing screens and playing videos. Event organisers must coordinate equipment selection, structural rigging, electrical systems, content preparation, signal distribution, weather protection, and on-site testing.

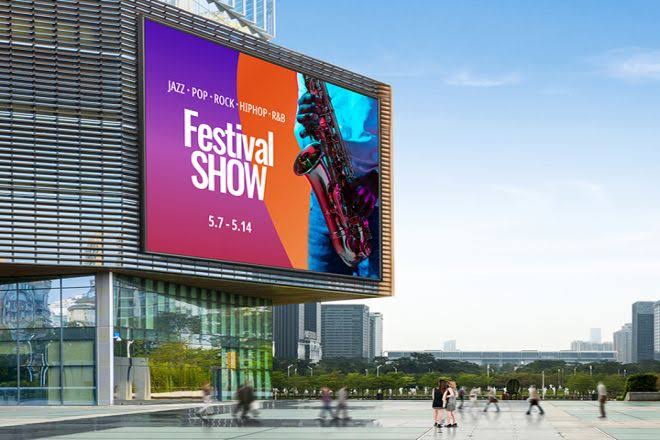

A well-planned outdoor led screen installation can deliver bright, engaging visuals in challenging environments, while a comprehensive led screen for event guide helps organisers understand the technical and logistical steps required for a smooth production process. From the initial site survey to the final dismantling stage, every detail matters when delivering a reliable and professional display experience.

This guide explains the key stages of event LED display production and how to prepare for both indoor and outdoor events.

Step 1 — Assess the Event Venue and Display Requirements

Before selecting LED equipment, production teams should understand the venue, audience size, viewing conditions, and event objectives.

Identify the Event Type

Different events require different display configurations. Corporate conferences may need high-resolution screens for presentations, speaker close-ups, and data visualisation. Concerts often require large video walls, dynamic backgrounds, and synchronised visual effects. Exhibitions may benefit from modular LED displays that showcase products and brand messaging.

Outdoor festivals and sporting events may require weather-resistant cabinets, higher brightness, and larger screens to serve audiences spread across a wide area.

Measure the Space and Viewing Distance

The available installation area determines the screen’s dimensions, aspect ratio, and mounting method. Production teams should measure the stage, ceiling height, available rigging points, audience layout, and access routes for transporting equipment.

Viewing distance is equally important. A finer pixel pitch generally provides sharper images at closer distances, while a larger pixel pitch may be suitable for audiences positioned farther away. The appropriate specification depends on content, screen size, budget, and the expected viewing environment.

A site survey should also identify potential obstructions, direct sunlight, nearby power sources, emergency exits, and locations where technicians can safely access the equipment.

Step 2 — Select the Right LED Display Equipment

Once the venue requirements are confirmed, the next step is choosing suitable LED panels and supporting equipment.

Indoor vs. Outdoor LED Displays

Indoor displays are typically designed for controlled lighting conditions and closer viewing distances. They often prioritise fine pixel pitch, detailed graphics, and accurate colour reproduction.

Outdoor displays generally require higher brightness and appropriate protection against rain, dust, and changing temperatures. The specific brightness and weather-resistance requirements depend on whether the screen faces direct sunlight, sits under a covered structure, or operates at night.

Choosing the correct equipment reduces the risk of poor visibility, incompatible components, and unnecessary production costs.

Prepare the Complete Equipment List

The LED panels are only one part of the production system. Depending on the setup, equipment may include:

• LED cabinets and spare panels
• Ground-support structures or approved rigging hardware
• Video processors and sending cards
• Signal cables, power cables, and distribution equipment
• Media playback computers or dedicated controllers
• Backup signal sources and essential spare components
• Weather protection and suitable cable covers
• Safety barriers and equipment for controlled access

The production team should confirm compatibility among the panels, controllers, processors, and content playback system before transporting equipment to the venue.

Step 3 — Plan Rigging, Ground Support, and Structural Safety

Rigging is one of the most important stages of event LED display production. Large LED walls can be heavy, and improper installation can create serious safety hazards.

Choose the Correct Mounting Method

Depending on the venue, the screen may be flown from an approved overhead structure or installed using a ground-support system. The choice depends on screen dimensions, weight, venue restrictions, available support points, and event design.

Qualified rigging professionals should verify the load calculations, lifting equipment, connection points, and stability of the complete structure. Outdoor installations may also require additional consideration of wind loading and ground conditions.

Never assume that a venue’s existing truss or ceiling structure can support an LED wall without proper approval and assessment.

Allow Enough Time for Installation

A practical installation schedule should include equipment unloading, structure assembly, panel mounting, cabling, alignment, testing, and safety inspections. Larger installations may require several teams working in coordination.

Production managers should establish clear responsibilities for riggers, electricians, LED technicians, content operators, and stage managers. A documented checklist helps prevent missed steps and reduces last-minute delays.

Step 4 — Configure Power, Cabling, and Signal Distribution

An LED display requires a stable power supply and a reliable signal path. Poor cable management or insufficient electrical planning can interrupt the show.

Calculate Power Requirements

The technical team should review the manufacturer’s power specifications and calculate the expected electrical load, including supporting equipment. The venue’s available power capacity must be confirmed before installation.

Qualified electricians should handle power distribution, grounding, protection devices, and connections according to applicable electrical requirements. Outdoor power connections must use equipment and protection suitable for the operating environment.

Where the event is critical, the team should establish an appropriate contingency plan for power interruptions and equipment failures.

Test the Signal Chain

The signal chain typically connects the playback computer or media server to the video processor, sending system, and LED panels. Technicians should verify resolution, refresh settings, colour configuration, and signal compatibility.

All cables should be labelled and routed to minimise trip hazards and accidental disconnection. Critical events may benefit from backup playback sources or redundant signal paths, depending on the system design.

Step 5 — Prepare and Test Event Content

Even a technically perfect display can disappoint if the content is incorrectly formatted or difficult to read.

Match Content to the Screen Resolution

Designers should prepare graphics and videos based on the actual LED wall dimensions and processor configuration. Unusual screen shapes or multiple display surfaces may require custom content mapping.

Important text and logos should remain within safe areas, while visual elements should be tested for distortion, cropping, and scaling issues. Event organisers should provide final content early enough for technical rehearsals.

Rehearse Every Major Cue

Before the audience arrives, technicians should test presentations, videos, speaker feeds, transitions, sponsor logos, and live-camera inputs.

For concerts, the team should check synchronisation with lighting and audio cues. For corporate events, presentations should be tested on the actual display rather than relying solely on a laptop preview.

A complete rehearsal helps identify problems before they affect the live programme.

Step 6 — Prepare for Rain, Wind, and Changing Weather

Weather planning is essential for outdoor event LED displays. Rain, humidity, heat, and wind can affect equipment performance and installation safety.

Verify Weather Protection

Outdoor LED cabinets should have suitable ingress protection ratings for their intended installation. However, an IP rating alone does not make an entire installation waterproof. Connectors, cable entries, power distribution equipment, and supporting structures also need appropriate protection.

Technicians should follow the manufacturer’s installation and operating instructions. They should never connect or handle electrical equipment in unsafe wet conditions.

Establish a Weather Contingency Plan

Production managers should monitor forecasts and define clear procedures for adverse weather. Depending on the installation, these procedures may include stopping operations, protecting equipment, restricting access, securing approved structures, or suspending the event.

Wind limits must be determined by qualified professionals based on the specific structure and equipment. A screen should not continue operating simply because its electronics remain functional if the overall installation is unsafe.

For outdoor events, safety decisions must take priority over keeping the display running.

Step 7 — Conduct Final Checks and Manage the Live Event

Before opening the venue, the production team should conduct a final inspection covering structural stability, cable routing, electrical safety, image quality, brightness, and content playback.

During the event, a designated LED operator should monitor the display and maintain communication with the production manager. Spare panels, cables, and other critical components should be accessible where practical.

Technicians should also document any faults and follow established procedures before replacing components or changing system settings. A clear communication plan allows the team to respond quickly without disrupting the wider programme.

Step 8 — Dismantle Safely and Review Performance

After the event, dismantling should follow the approved sequence. Equipment must be powered down and isolated as required before cables and panels are removed. Rigging and ground-support structures should be dismantled by qualified personnel, with the area kept clear of unauthorised people.

Panels should be inspected for damage, cleaned according to manufacturer guidance, and packed securely for transport. Cables and accessories should be checked before storage.

Finally, the production team should review the event’s performance, noting technical issues, installation time, content problems, and improvements for future projects. This review helps refine equipment planning and operational procedures.

Conclusion

Successful event LED display production requires careful coordination from the initial venue survey to the final equipment pack-down. Selecting suitable panels, planning safe rigging, configuring power and signals, preparing content, and managing weather risks all contribute to a dependable visual experience.

Whether an organiser is planning a corporate conference, concert, exhibition, or outdoor festival, following a structured production process can minimise avoidable problems and improve the audience experience. By combining professional installation with effective technical planning, event teams can use LED displays to deliver memorable visuals while maintaining a strong focus on safety and reliability.
